Description

Hawke Vantage 4-16×50 AO parallax Illuminated Red–Green etched glass .17 HMR Rifle Scope – Hawke product code 14261

Hawke Vantage illuminated reticle scopes offer beautiful 11 layer fully multi-coated optics for excellent clarity. With etched glass reticles they are Waterproof, Shockproof and Nitrogen purged.

Rimfire .17 HMR reticle – Designed for the .17 HMR caliber. Zero on maximum mag at 100 yards and all aim points are pre-calculated 2550 fps.

Easy to zero and outstanding downrange accuracy with illuminated aim
points for all lighting conditions. Yardages etched into the reticle
field of view.

Main Features

>>> Waterproof, Shockproof, Nitrogen purged.

>>> All calibre rated – reticle design makes this model best suited for rimfire .17 HMR

>>> Warranty: Hawke Worldwide Warranty

Key Features

• 11 layer fully multi-coated optics for excellent clarity
• 1 inch mono-tube chassis for superior strength

Glass etched reticle with red and green illumination

• Rheostat on saddle offers 5 levels of brightness – red and green
• ¼ MOA low profile ‘no-snag’ fingertip turrets
• Fast focus eyebell and high torque zoom ring

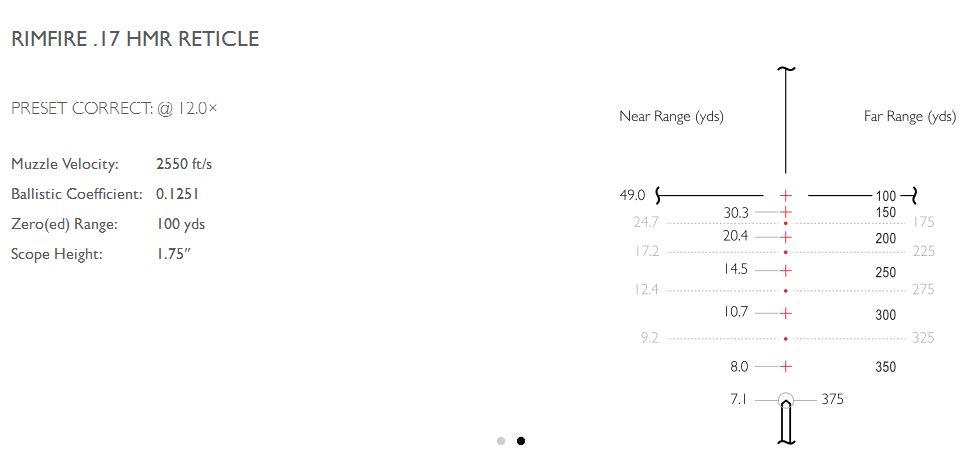

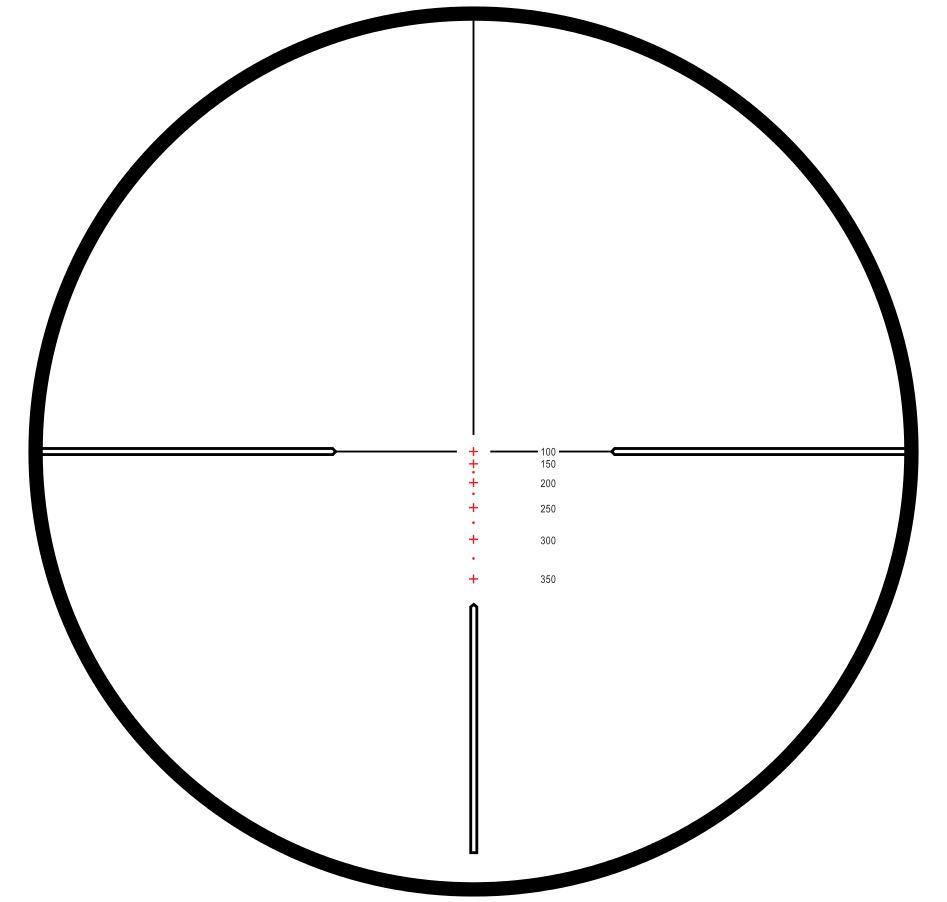

.17 Rimfire HMR specialised Reticle – Red-Green IR – Glass Etched
Designed for the .17 HMR caliber. Zero on maximum mag at 100 yards and all aim points are pre-calculated 2550 fps.

Easy to zero and outstanding downrange accuracy with illuminated aim
points for all lighting conditions. Yardages etched into the reticle
field of view.

Benefits of Glass Etched Reticles and Illumination

Etched glass reticle – The reticle is laser etched onto the lens glass giving a beautiful crisp and clear view, much more so than with a standard wire reticle.

The etching also makes it totally immune to recoil shock – it will never break or come loose as can happen with wire reticles.

In addition it eliminates all internal light reflection from use of the IR function, this again is a problem with wire reticle scopes.

Illuminated reticle function

• In low light or very bright light targets can appear dark and shodowed.
• The
  standard black reticle in such situations is very hard to contrast
  against the target, especially if you are taking a shot under pressure
  on a sudden target of opportunity and/or moving target.

Using illumination, red in low light and green in low and bright, helps you get sharp reticle over target contrast and massively improve the aim point and speed.

Fast and easy IR control by side turret. 5 levels red and green plus off for plain black.

50mm Fully Multi Coated Lens:

• 11 layer fully multi coated for excellent clarity.
• 50mm diameter – Excellent all round medium/large size. A good blend of size without bulk

4-16x variable magnification

• Adjust from 4x to 16x.
• A great magnification range for general purpose hunting.
• Very Easy and very fast dial adjustment.
• Ocular eyebell focus from 5 yards.

Fast focus eyebell
Easy, effective focus.

Parallax Focus Adjustment – AO – Adjustable Objective (front lens casing)

Parallax
effect is the term that describes the difference in angles between
objects that are seen up close and those seen far away. When you look at
telephone poles passing by on the side of the road, those closest to
your car seem to pass very fast, while the ones far away seem to go very
slow. That difference is due to the parallax effect.

The
reticle in your scope is like a telephone pole that’s very close. If
you move your head on the stock while watching the target through the
scope the reticle may seem to move, wobble or blur against the target.
That affects where you perceive the aim point to be, and that affects
your accuracy. Parallax focus correction adjustment reduces this phenomenon to the greatest extent possible.

Parallax
focus correction therefore is a must for anyone attempting to use
either a high magnification scope, shooting drastically different
yardages with the same scope or anyone attempting to shoot at extremely
close ranges or extremely long ranges. Especially so if it is a
combination of these factors.

This scope features Parallax focus correction by way of the adjustable front lens housing.

Specifications

• Chassis: 1″ (25mm) Mono-tube
• Magnification range: 4-16x
• Objective: 50mm
• Reticle: .17 HMR
• Illumination: Red / Green – 5 Levels – and off for black
• Focus/Parallax: 14m/15 yards to infinity
• Field of View: m @100m / ft @100yds 7.8 – 2.1m / 23.6 – 6.2ft
• Eye relief: 89mm / 3.5″
• Length: 388mm / 15.3″
• Weight: 620g / 21.9oz

Other Specification

• Material: Magnesium alloy
• Exit Pupil: 13 – 3mm / 0.5 – 0.1″
• Ocular Type: Fast Focus
• Lens Coating: Fully Multi-Coated – 11 Layers
• Power Selector Style: Knurled Posi-Grip
• Elevation and Windage Increment: ¼ MOA
• Elevation and Windage Adjustment Range: 80 MOA
• Turret Caps: YES
• Turret Type: Low Profile

Accessories included

• Elasticated Lens Covers
• Lens Cloth
• CR2032 battery
