Description

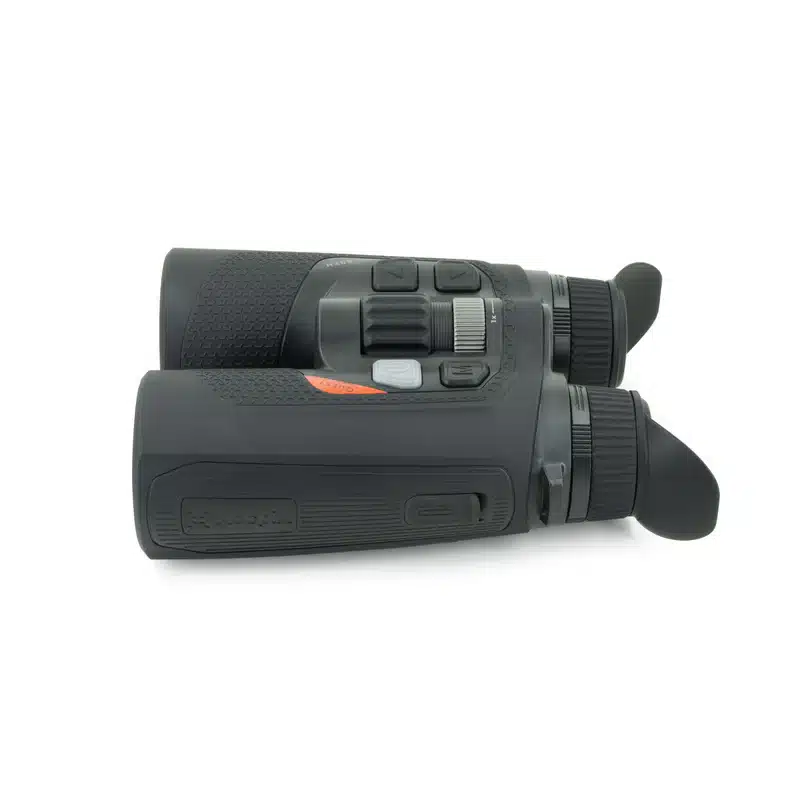

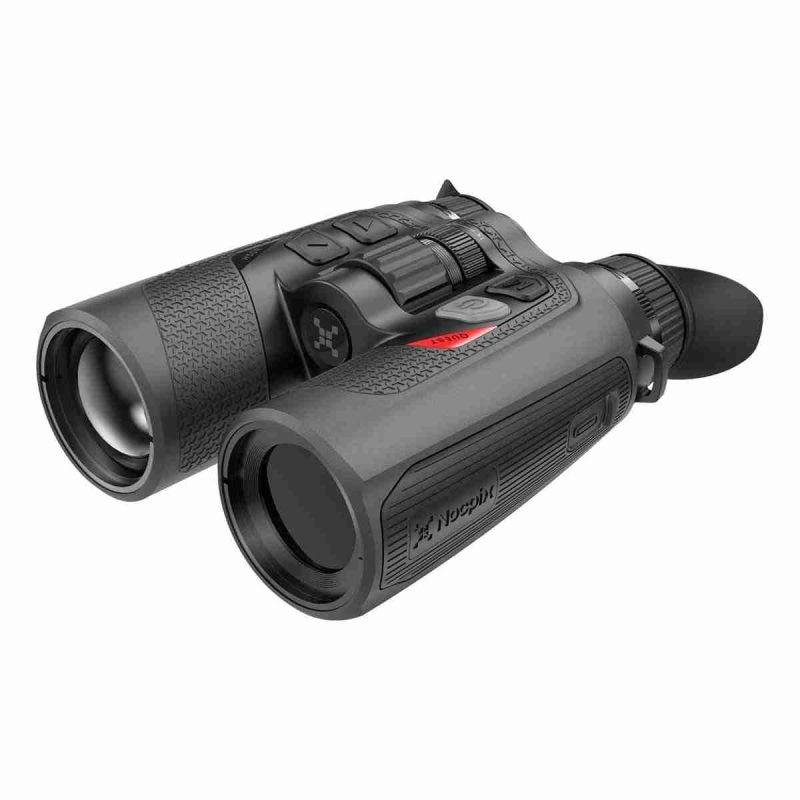

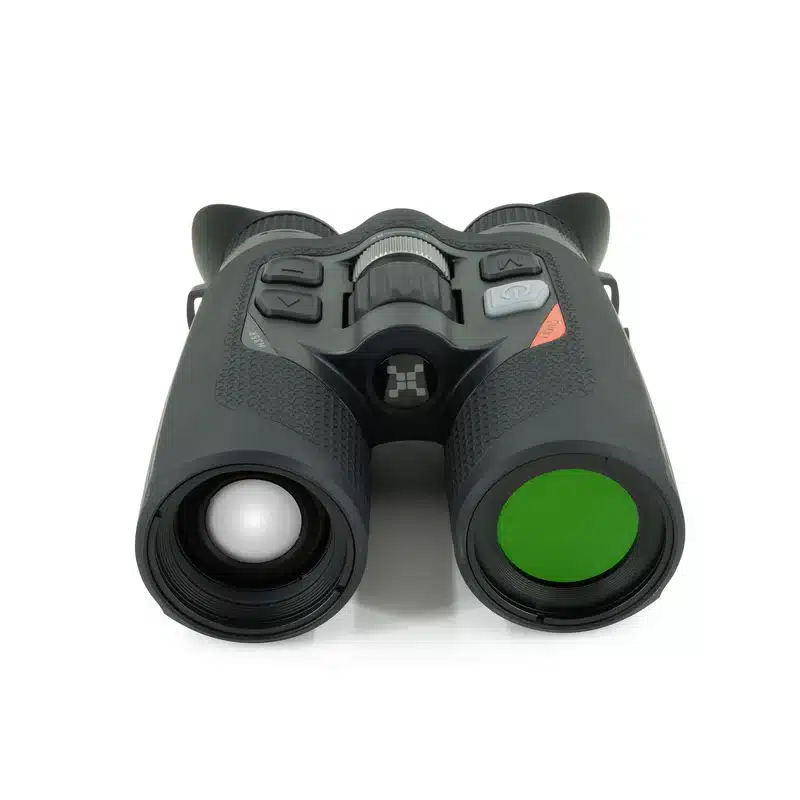

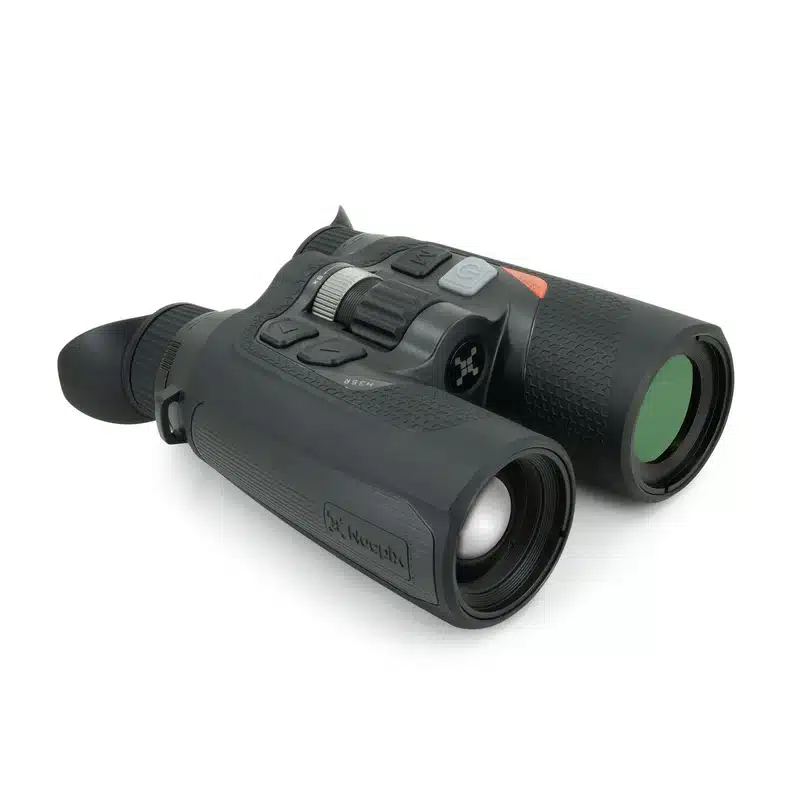

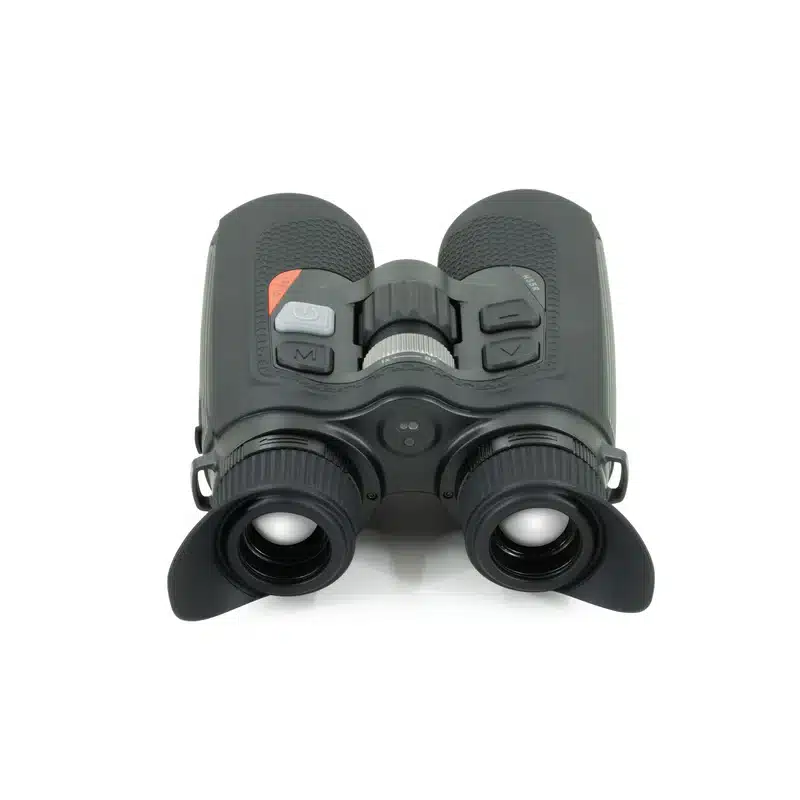

Nocpix Quest H35R LRF (640×512) Thermal Binoculars

Nocpix QUEST H35R Thermal (640×512) Binocular. The QUEST Series offers a traditional binocular feel, with a high-performance thermal sensor, 60Hz frame rate, and integrated LRF. All housed in a lightweight, full-rubber coated, waterproof body. With in-house developed sensor technology and advanced Reality+ AI image algorithms, it delivers an immersive, eye-friendly viewing experience.

Equipped with a high-performance sensor that delivers exceptional image clarity. With a NETD ≤15mK and a 60Hz frame rate, it ensures superior thermal sensitivity, providing clear and visuals  even in the most challenging environments.

The QUEST features a detection range of up to 2600m and a build-in concealed LRF with a range of up to 1000m, allowing you to see farther and more accurately than ever before, It also supports ballistic calculation, providing data support for collaborative hunting.

Features

• Vision+ System and Reality+ AI
• Integrated LRF upto 1000m
• Lightweight and Portable
• One-Handed Operation
• Electronic Image Stabilisation
• Built-In and Replaceable 18650 Battery
• 10mm Exit Pupil
• Photo/Video/MIC/64GB

Specifications

• Thermal Sensor Resolution: 640x512px
• Thermal Sensor Pixel Pitch: 12µm
• NETD, mK: ≤15
• Frame Rate: 60Hz
• Objective Lens/Tube: 35mm F0.9
• Field of View (H×V): 12.5° x 10°
• Magnification: 3–24x
• Detection Range: 1800m
• LRF Ranging Distance: 1000m
• Display: 1920x1200px, AMOLED
• Battery: Built-in 4200mAh + 18650 battery
• Max. Operating Time: 6h
• Weight: <700g (without replaceable battery)
• Dimensions (mm): 160 x 137 x 60
• IP Rating: IP67
